Rectangular Cells

Rectangular cells are used for most UV/VIS routine analysis. By far the most common type of cell, they have two windows clear and conform to international standard dimension. The 10mm pathlength size should fit most instruments that use rectangular cells. Available pathlengths are from 1mm to 100mm. Check with your instrument manual to see if you need an adaptor for longer pathlength cells.

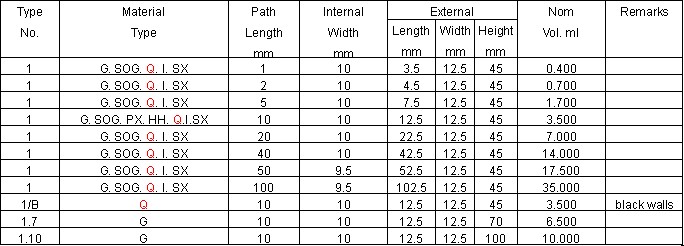

Standard Rectangular Cells Type 1

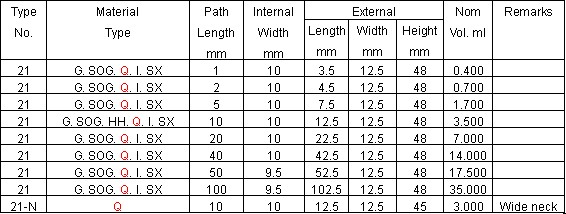

Type 21 Cells with PTFE stopper

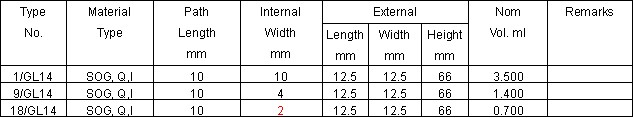

Type`s 1,9 and 18Standard Rectangular Cells,Screw Cap,with or without septum

Rectangular Semi-Micro Cells

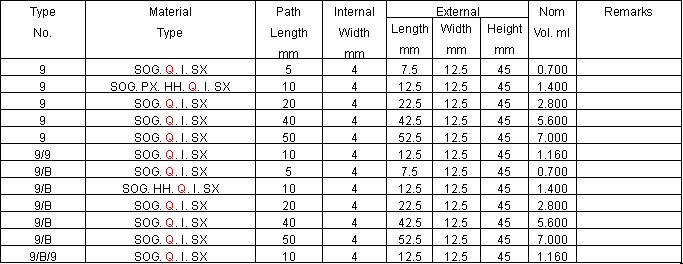

Semi-Micro Type 9,9B Open topped,supplied with a non-sealing PTFE cover

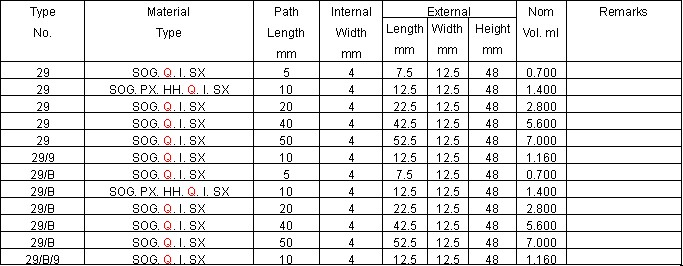

Type 29,29B Semi-Micro Cells,with PTFE Stopper

Micro Spectrophotometer Cells

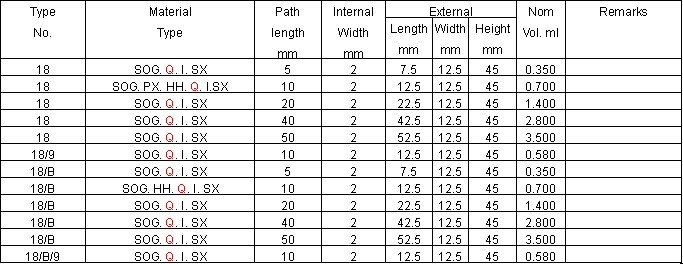

Type 18,18B Micro Sprectrophotometer

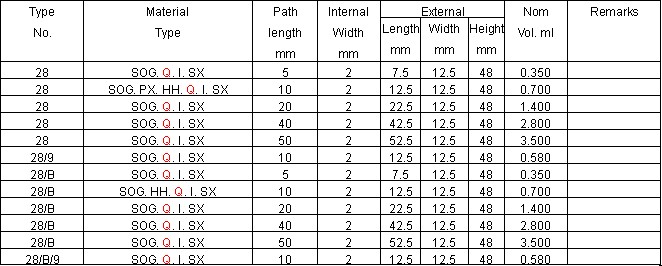

Type 28,28B Micro Spectrophotometer Cells,with stoper top

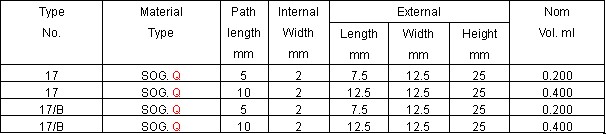

Type 17,17B Micro short Path Length Cells,and Black walled self masking

Type 15A Micro aspiration Cells

Sub-Micro Rectangular Cells

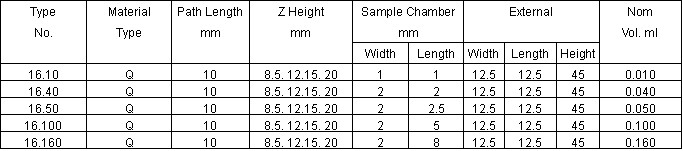

Type 16 Sub-Micro Cells-with volumes from 10 to 160 microliter

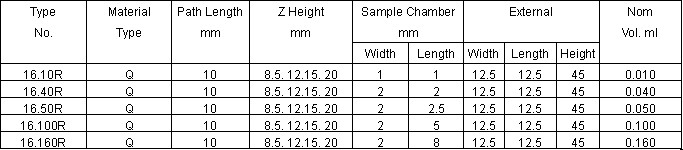

Type 16R Sub-Micro Cells-volumes from 10-160 microliter with liquid tight stopper

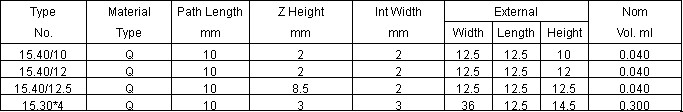

Type 15 Sub Micro and Multi Micro Cells
